应用：

活用于输送普通液压流体(如矿物油、可溶性油、油水乳浊液、乙二醇水溶液及水)，应用于综合采煤机械液压系统、工程机械液压系统。工作温度范围为-40℃至+100℃。承压能力较602型高。602H型符合耐高温+125℃等级要求。

执行标准：

胶管执行Q/JGZP 1标准。

外观：

外表黑色，有光面(602A)或布纹(602AW)。

 Application：

Suitable to delivery of common hydraulic fluid(e.g.mineral oilsoluble oil,oil-water emulsion, ethylene glycol aqueous solution and water) in the hydraulic system of multifunctional mining machinery and engineering machinery.Working temperature ranges from -40℃to +100℃.Pressure bearing ability is higher than Type 602R meets high emperature +125℃ level requirements.

Applicable Standards：

Rubber hose according to Standard Q/JGZP1.

Appearance：

Visually black, with polish(602A) or wove pattern(602AW).

结构特性:

胶管由耐油的内胶层、一层高强钢丝编织增强层、耐天候的外胶层组成。

Structural Characteristics:

The rubber hose consists of oil-resistant inner layer,one layer of high-strength steel wire braided reinforcement and weather resistant outer layer.

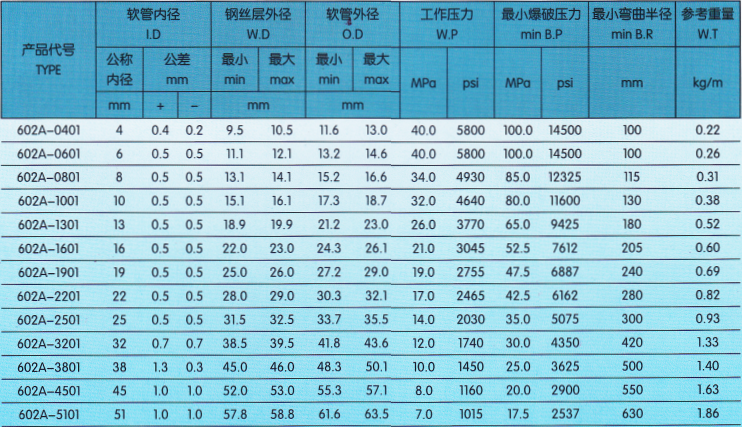

技术参数：

结构特性:

胶管由耐油的内胶层、二层高强钢丝编织增强层、耐天候性优良的外胶层组成。

Structural Characteristics:

The rubber hose consists of oil-resistant inner layer, two layers of high-strength steel wire braided reinforcement and weather resistant outer laver.

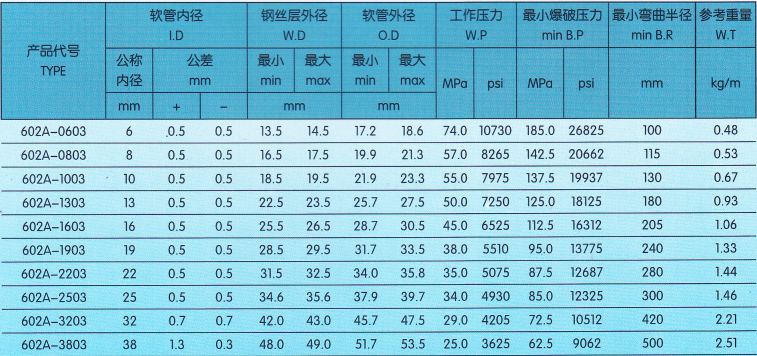

技术参数：

结构特性:

胶管由耐油的内胶层、三层钢丝编织增强层、耐天候的外胶层组成。

Structural Characteristics:

The rubber hose consists of oil-resistant inner layer,three layers of high-strength steel wire braided reinforcement and weather resistant outer layer

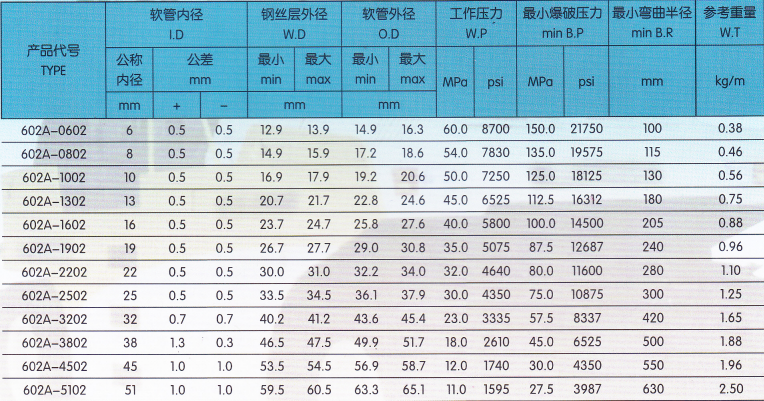

技术参数：
